MTL-10018C-019

▪ Bi-telecentric lens

▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

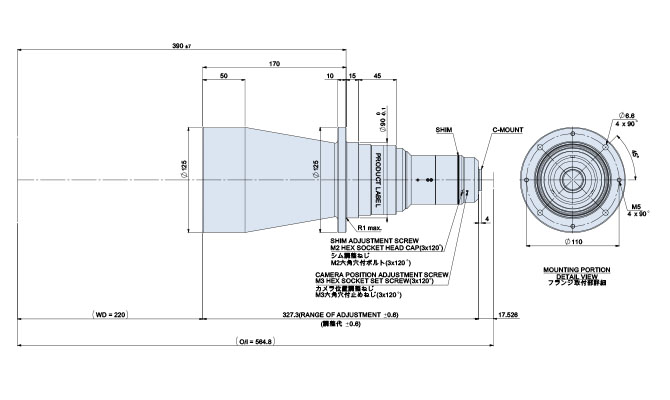

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-10018C-019
Max IF (mm)				18.5
FOV type (Φmm))				100
Mag. (x)				0.185
WD (mm)				220
Field of View	1/2"	H	6.4	35
		V	4.8	26
		D	8	43
	1/1.8"	H	7.1	38
		V	5.3	29
		D	8.9	48
	2/3"	H	8.8	48
		V	6.6	36
		D	11	59
	1.1"	H	14.1	76
		V	45	56
		D	18.1	95
Optical specifications		Effective F#		8.0
		Distortion	(%)	0.02
		Telecentricity	(deg.)	0.03
		Resolution @520nm	(μm)	27.5
		DOF @40um	(mm)	18.7
Mechanical specifications		Front Outer dia.	(Φmm)	125
		Barrel Length	(mm)	327.4
		Weight	(kg)	2.11
		Mount		C
