MTL-15018C-012

▪ Bi-telecentric lens

▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

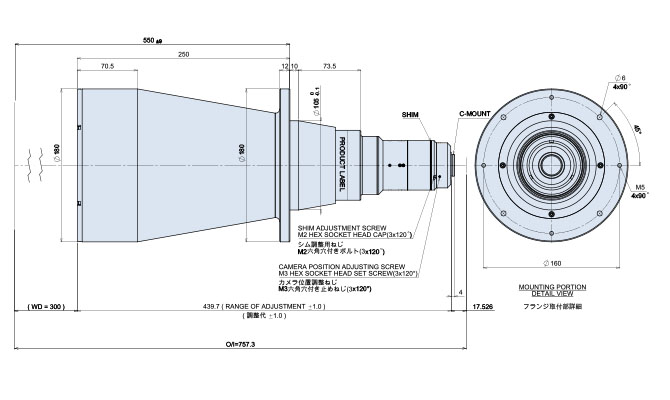

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-15018C-012
Max IF (mm)				18.5
FOV type (Φmm)				150
Mag. (x)				0.123
WD (mm)				300
Field of View	1/2"	H	6.4	52
		V	4.8	39
		D	8	65
	1/1.8"	H	7.1	58
		V	5.3	43
		D	8.9	72
	2/3"	H	8.8	71
		V	6.6	54
		D	11	89
	1.1"	H	14.1	115
		V	45	84
		D	18.1	142
Optical specifications		Effective F#		8.0
		Distortion	(%)	0.02
		Telecentricity	(deg.)	0.04
		Resolution @520nm	(μm)	37.1
		DOF @40um	(mm)	42.2
Mechanical specifications		Front Outer dia.	(Φmm)	180
		Barrel Length	(mm)	439.7
		Weight	(kg)	4.67
		Mount		C
