Bi-Telecentric Lens/Illumination

MTL-26518C-007

▪ Bi-telecentric lens

▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

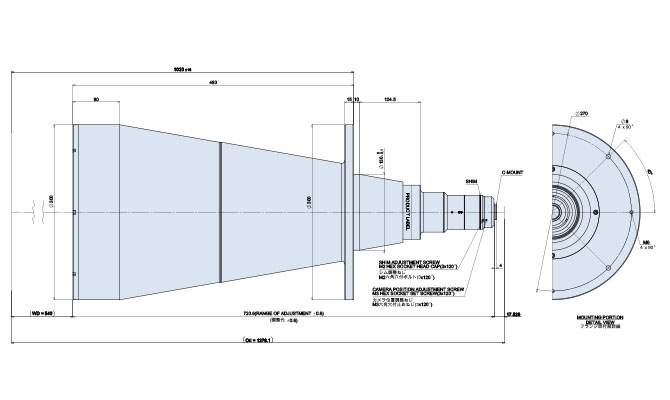

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-26518C-007
Max IF (mm)				18.5
FOV type (Φmm)				265
Mag. (x)				0.070
WD (mm)				540
Field of View	1/2"	H	6.4	92
		V	4.8	69
		D	8	115
	1/1.8"	H	7.1	102
		V	5.3	76
		D	8.9	128
	2/3"	H	8.8	126
		V	6.6	95
		D	11	158
	1.1"	H	14.1	203
		V	45	149
		D	18.1	251
Optical specifications		Effective F#		8.0
		Distortion	(%)	0.03
		Telecentricity	(deg.)	0.05
		Resolution @520nm	(μm)	72.9
		DOF @40um	(mm)	132.1
Mechanical specifications		Front Outer dia.	(Φmm)	300
		Barrel Length	(mm)	720.6
		Weight	(kg)	15.5
		Mount		C
