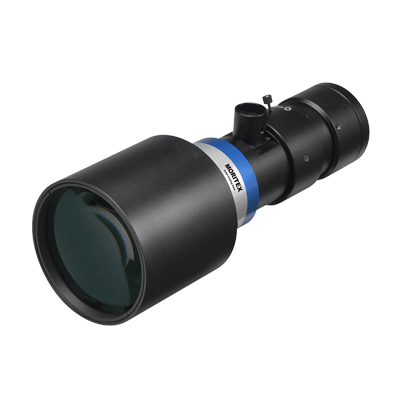

| Spec | MTL-9023P-026 | |||
|---|---|---|---|---|
| Max IF (mm) | 23 | |||
| FOV type (Φmm) | 90 | |||
| Mag. (x) | 0.256 | |||
| WD (mm) | 120 | |||
| Field of View | 1/2" | H | 6.4 | 25 |
| V | 4.8 | 19 | ||
| D | 8 | 31 | ||
| 2/3" | H | 8.8 | 34 | |
| V | 6.6 | 26 | ||
| D | 11.0 | 43 | ||
| 1.1" | H | 14.1 | 55 | |
| V | 10.3 | 40 | ||
| D | 18.1 | 69 | ||
| 4/3" | H | 18.1 | 72 | |
| V | 13.6 | 54 | ||
| D | 90 | 81 | ||
| Optical specifications | Effective F# | 8.0 | ||
| Distortion | (%) | 0.02 | ||
| Telecentricity | (deg.) | 0.03 | ||
|
Resolution @520nm |
(μm) | 19.9 | ||
|
DOF @40um |
(mm) | 9.8 | ||

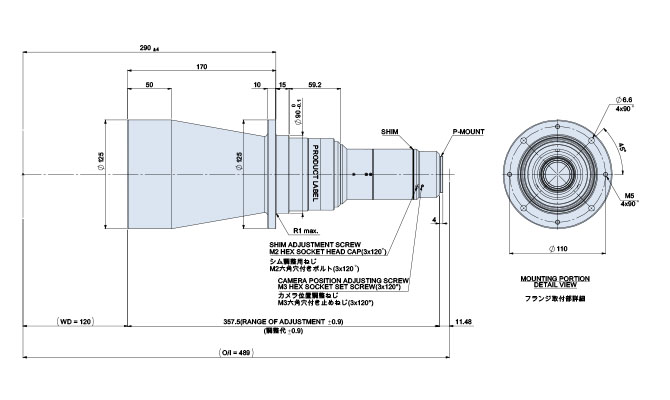

| Mechanical specifications | Front Outer dia. | (Φmm) | 125 | |
| Barrel Length | (mm) | 357.5 | ||
| Weight | (kg) | 2.14 | ||
| Mount | P | |||
