MTL-15023P-015

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm




MTL-15023P-015
Download Data User Manual Drawing Data Drawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-15023P-015
Max IF (mm) 23
FOV type (Φmm) 150
Mag. (x) 0.153
WD (mm) 300
Field of View 1/2" H 6.4 42
V 4.8 31
D 8 52
2/3" H 8.8 57
V 6.6 43
D 11.0 72
1.1" H 14.1 92
V 10.3 68
D 18.1 114
4/3" H 18.1 120
V 13.6 90
D 90 150
Optical specifications Effective F# 8.0
Distortion (%) 0.02
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 33.1
DOF
@40um 		(mm) 27.3
Mechanical specifications Front Outer dia. (Φmm) 180
Barrel Length (mm) 465.8
Weight (kg) 4.74
Mount P

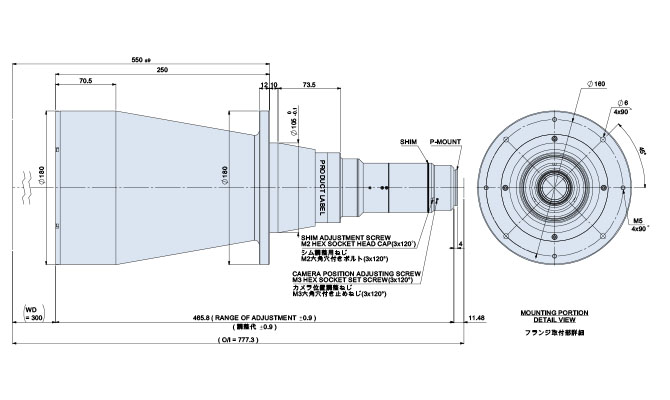

External View
