MTL-19535P-018

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm
MTL-19535P-018
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-19535P-018
Max IF (mm) 35
FOV type (Φmm) 195
Mag. (x) 0.180
WD (mm) 365
Field of View 2/3" H 8.8 49
V 6.6 37
D 11 61
1.1" H 14.1 78
V 10.3 57
D 18.1 101
4/3" H 13.1 76
V 13.6 126
D 22.6 126
35mm H 23 128
V 23 128
D 32.6 181
Optical specifications Effective F# 9.2
Distortion (%) -0.04
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 32.4
DOF
@40um 		(mm) 22.7
Mechanical specifications Front Outer dia. (Φmm) 230
Barrel Length (mm) 620.3
Weight (kg) 8.45
Mount P

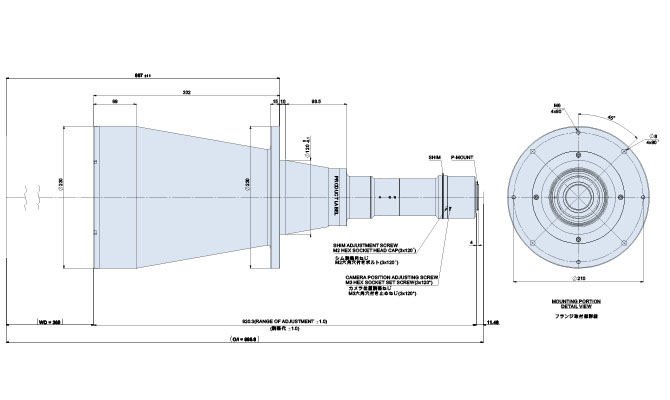

External View
