MTL-31035P-011

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm
MTL-31035P-011
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-31035P-011
Max IF (mm) 35
FOV type (Φmm) 310
Mag. (x) 0.113
WD (mm) 470
Field of View 2/3" H 8.8 78
V 6.6 58
D 11 97
1.1" H 14.1 125
V 10.3 191
D 18.1 160
4/3" H 13.1 160
V 13.6 120
D 22.6 200
35mm H 23 204
V 23 204
D 32.6 288
Optical specifications Effective F# 9.2
Distortion (%) 0.04
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 51.5
DOF
@40um 		(mm) 57.5
Mechanical specifications Front Outer dia. (Φmm) 350
Barrel Length (mm) 848.2
Weight (kg) 25.9
Mount P

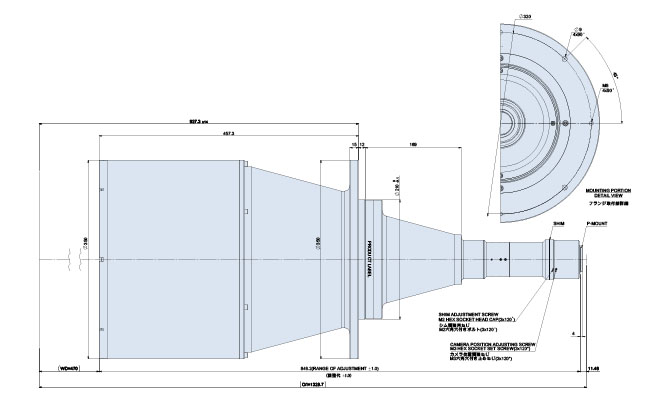

External View
