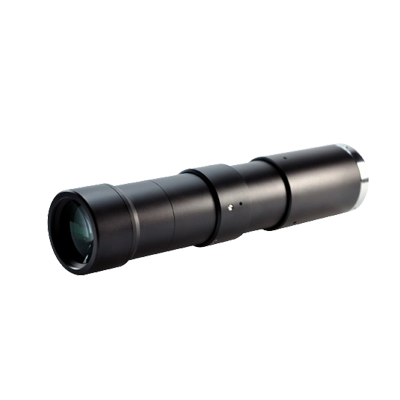

Telecentric Lens

MML03-HR220DVI-30M58

▪ Designed for large format camera（Diagonal 28/35/43mm);
▪ High resolution, compatible with 1.1” 3.2μm sensor.

MML03-HR220DVI-30M58
Download Data User ManualDrawing Date Drawing Date（STEP）
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection

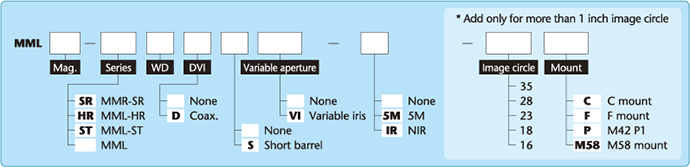

Model Description
Specifications
  • Model
  • MML03-HR220DVI-30M58
  • Magnification (x)
  • 0.3
  • O/I [mm]
  • 523.6
  • WD (mm)
  • 218
  • Resolution (μm)
  • 15.7-31.3
  • Depth of Field (mm)
  • 6.22-12.45
  • NA
  • 0.021-0.011
  • Effective Fno
  • 7-14
  • IF (mm)
  • 30
  • TV Distortion (%)
  • ≤0.01
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

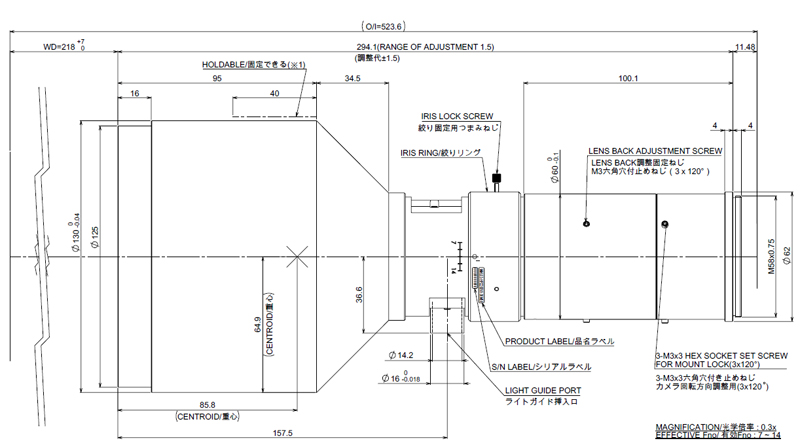

External View
