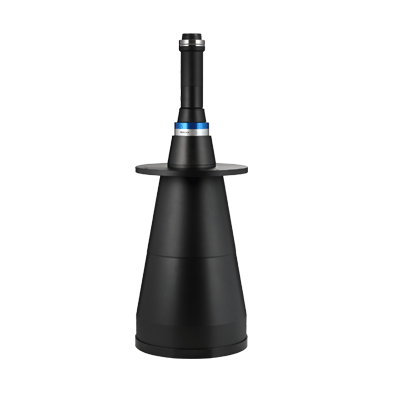

| Spec | MTL-24043M58-018 | |||
|---|---|---|---|---|
| Max IF (mm) | 43.5 | |||
| FOV type (Φmm) | 240 | |||
| Mag. (x) | 0.182 | |||
| WD (mm) | 375 | |||
| Field of View | 1.1" | H | 14.1 | 78 |
| V | 10.3 | 57 | ||
| D | 18.1 | 100 | ||
| 4/3" | H | 18.1 | 100 | |
| V | 13.6 | 75 | ||
| D | 22.6 | 124 | ||
| 35mm | H | 23 | 127 | |
| V | 23 | 127 | ||
| D | 32.6 | 179 | ||
| 43.5mm | H | 100 | 199 | |
| V | 67 | 133 | ||
| D | 43.5 | 239 | ||
| Optical specifications | Effective F# | 13.7 | ||
| Distortion | (%) | 0.05 | ||
| Telecentricity | (deg.) | 0.05 | ||
|
Resolution @520nm |
(μm) | 47.9 | ||
|
DOF @40um |
(mm) | 33.2 | ||

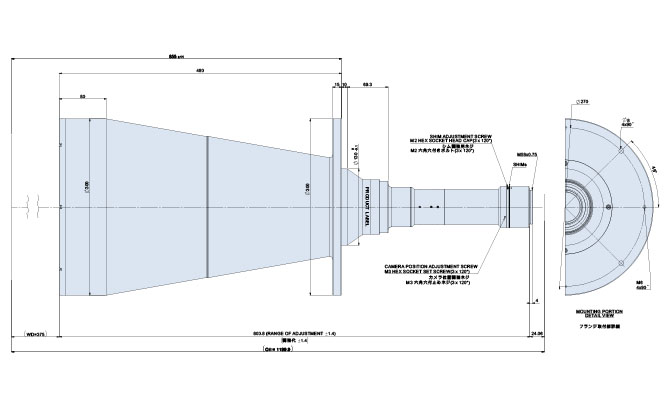

| Mechanical specifications | Front Outer dia. | (Φmm) | 300 | |
| Barrel Length | (mm) | 800.8 | ||
| Weight | (kg) | 15.8 | ||
| Mount | M58 | |||
