MTL-31043M58-014

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ M58Mount : M58P0.75, FB24.06mm
MTL-31043M58-014
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-31043M58-014
Max IF (mm) 43.5
FOV type (Φmm) 310
Mag. (x) 0.140
WD (mm) 470
Field of View 1.1" H 14.1 101
V 10.3 73
D 18.1 129
4/3" H 18.1 129
V 13.6 97
D 22.6 161
35mm H 23 164
V 23 164
D 32.6 232
43.5mm H 100 258
V 67 172
D 43.5 310
Optical specifications Effective F# 13.7
Distortion (%) 0.04
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 61.9
DOF
@40um 		(mm) 55.7
Mechanical specifications Front Outer dia. (Φmm) 350
Barrel Length (mm) 879.8
Weight (kg) 26.0
Mount M58

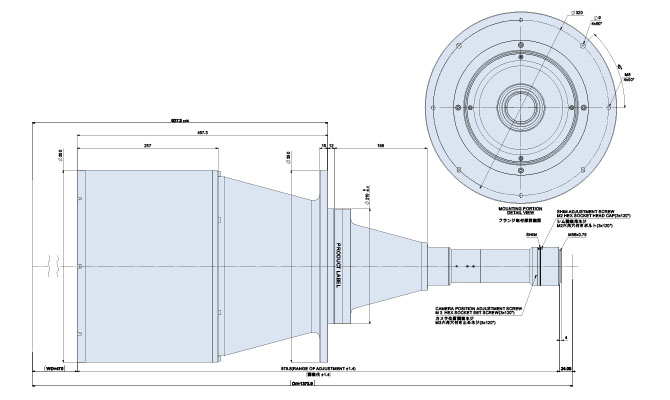

External View
