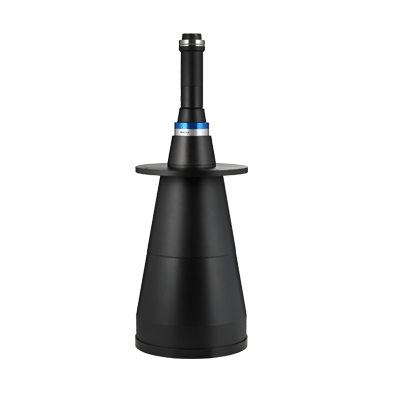

| Spec | MTL-19557V74-029 | |||
|---|---|---|---|---|
| Max IF (mm) | 57.3 | |||
| FOV type (Φmm) | 195 | |||
| Mag. (x) | 0.294 | |||
| WD (mm) | 365 | |||
| Field of View | 4/3" | H | 14.1 | 62 |
| V | 10.3 | 46 | ||
| D | 18.1 | 77 | ||
| 35mm | H | 18.1 | 78 | |
| V | 13.6 | 78 | ||
| D | 22.6 | 111 | ||
| 43.5mm | H | 23 | 123 | |
| V | 23 | 82 | ||
| D | 32.6 | 148 | ||
| 57.3mm | H | 36.2 | 166 | |
| V | 24.1 | 99 | ||
| D | 43.5 | 193 | ||
| Optical specifications | Effective F# | 15.0 | ||
| Distortion | (%) | -0.03 | ||
| Telecentricity | (deg.) | 0.04 | ||
|
Resolution @520nm |
(μm) | 32.4 | ||
|
DOF @40um |
(mm) | 13.9 | ||

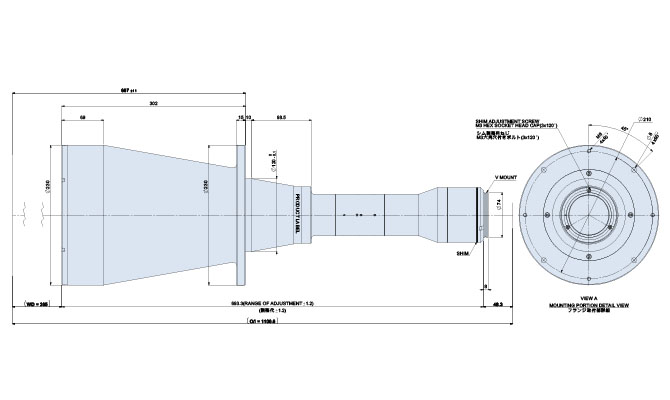

| Mechanical specifications | Front Outer dia. | (Φmm) | 230 | |
| Barrel Length | (mm) | 693.3 | ||
| Weight | (kg) | 9.07 | ||
| Mount | V74 | |||
