MTL-6582M95-126

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 14 FOV types
▪ Inspection data provided for every lens
▪ M95Mount : M95P1, FB9.4mm
MTL-6582M95-126
Download Data User Manual Drawing DataDrawing Data (STEP)
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-6582M95-126
Max IF (mm) 82
FOV type (Φmm) 65
Mag. (x) 1.279
WD(mm) 135
Field of View 35mm H 23 18
V 23 18
D 32.6 25
43.5mm H 36.2 28
V 24.1 19
D 43.5 34
57.3mm H 48.7 38
V 29 23
D 56.7 44
82mm H - -
V - -
D 82 65
Optical specifications Effective F# 18.0
Distortion (%) -0.04
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 8.9
DOF
@40um 		(mm) 0.9
Mechanical specifications Front Outer dia. (Φmm) 86
Barrel Length (mm) 579.9
Weight (kg) 2.22
Mount M95

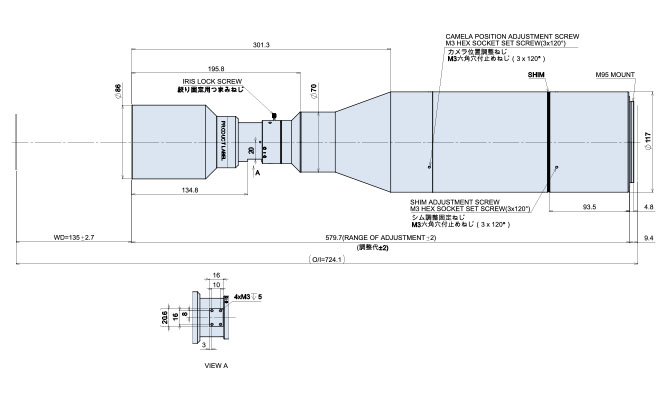

External View
