MTL-10082M95-082

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 14 FOV types
▪ Inspection data provided for every lens
▪ M95Mount : M95P1, FB9.4mm
MTL-10082M95-082
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-10082M95-082
Max IF (mm) 82
FOV type (Φmm) 100
Mag. (x) 0.831
WD (mm) 220
Field of View 35mm H 23 28
V 28 25
D 32.6 39
43.5mm H 36.2 44
V 24.1 29
D 43.5 52
57.3mm H 48.7 59
V 29 35
D 56.7 68
82mm H - -
V - -
D 82 100
Optical specifications Effective F# 18.0
Distortion (%) 0.02
Telecentricity (deg.) 0.03
Resolution
@520nm 		(μm) 13.8
DOF
@40um 		(mm) 2.1
Mechanical specifications Front Outer dia. (Φmm) 125
Barrel Length (mm) 675.9
Weight (kg) 3.30
Mount M95

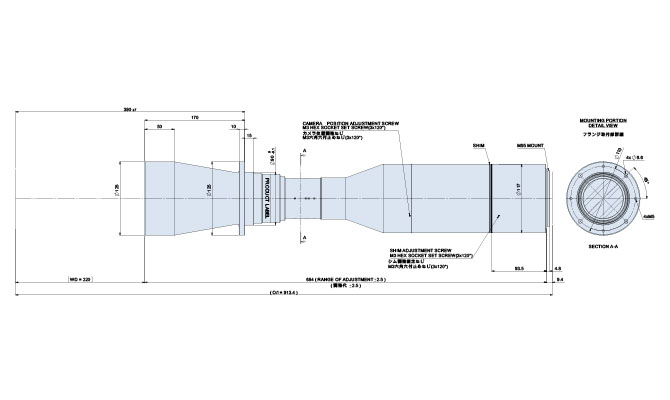

External View
