MTL-13582M95-061

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 14 FOV types
▪ Inspection data provided for every lens
▪ M95Mount : M95P1, FB9.4mm
MTL-13582M95-061
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-13582M95-061
Max IF (mm) 82
FOV type (Φmm) 135
Mag. (x) 0.615
WD (mm) 260
Field of View 35mm H 23 37
V 28 37
D 32.6 53
43.5mm H 36.2 59
V 24.1 39
D 43.5 71
57.3mm H 48.7 79
V 29 47
D 56.7 92
82mm H - -
V - -
D 82 135
Optical specifications Effective F# 18.0
Distortion (%) 0.04
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 18.6
DOF
@40um 		(mm) 3.8
Mechanical specifications Front Outer dia. (Φmm) 160
Barrel Length (mm) 757.8
Weight (kg) 5.0
Mount M95

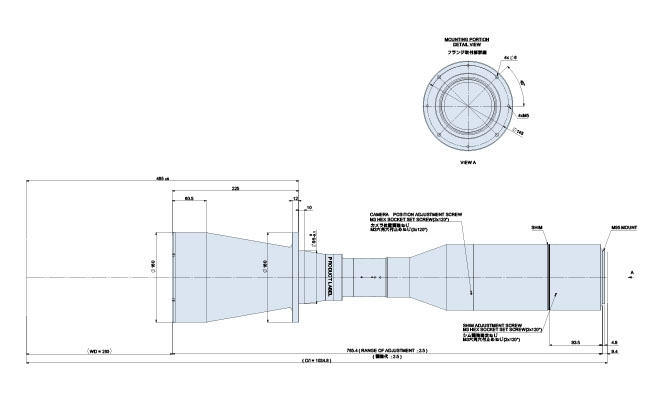

External View
