MTL-15082M95-055

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 14 FOV types
▪ Inspection data provided for every lens
▪ M95Mount : M95P1, FB9.4mm
MTL-15082M95-055
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-15082M95-055
Max IF (mm) 82
FOV type (Φmm) 150
Mag. (x) 0.553
WD (mm) 300
Field of View 35mm H 23 42
V 28 42
D 32.6 59
43.5mm H 36.2 65
V 24.1 44
D 43.5 79
57.3mm H 48.7 88
V 29 52
D 56.7 103
82mm H - -
V - -
D 82 150
Optical specifications Effective F# 18.0
Distortion (%) 0.02
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 20.7
DOF
@40um 		(mm) 4.7
Mechanical specifications Front Outer dia. (Φmm) 180
Barrel Length (mm) 787.2
Weight (kg) 5.9
Mount M95

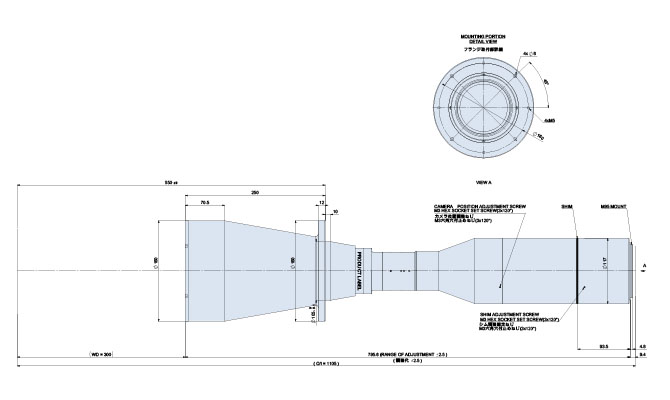

External View
