MTL-31082M95-026

▪ Bi-telecentric lens
▪ High resolution design compatible with 5 μm/pixel sensors
▪ 14 FOV types
▪ Inspection data provided for every lens
▪ M95Mount : M95P1, FB9.4mm
MTL-31082M95-026
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-31082M95-026
Max IF (mm) 82
FOV type (Φmm) 310
Mag. (x) 0.268
WD (mm) 470
Field of View 35mm H 23 86
V 28 86
D 32.6 122
43.5mm H 36.2 135
V 24.1 90
D 43.5 162
57.3mm H 48.7 182
V 29 108
D 56.7 212
82mm H - -
V - -
D 82 309
Optical specifications Effective F# 18.0
Distortion (%) 0.04
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 42.7
DOF
@40um 		(mm) 20.1
Mechanical specifications Front Outer dia. (Φmm) 350
Barrel Length (mm) 1111.9
Weight (kg) 26.8
Mount M95

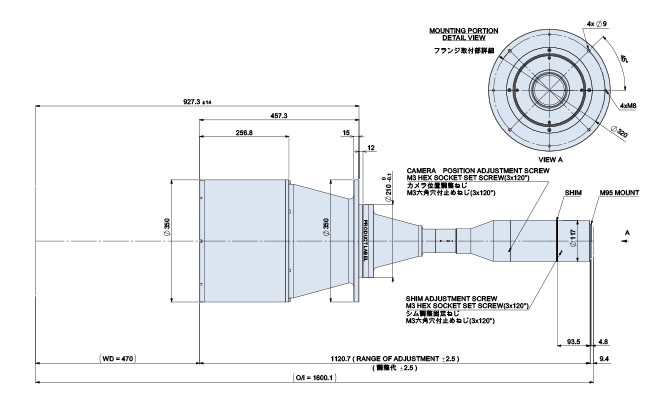

External View
