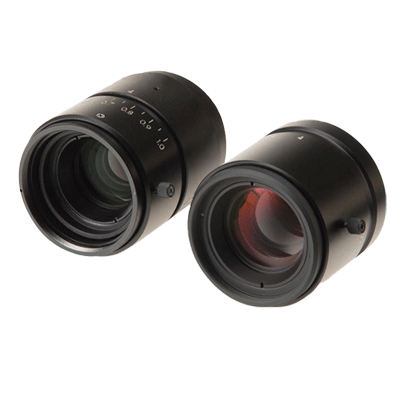

ML-F80C-0510

▪ Magnification from 0.2× to 0.5× (ML-F80C-0205) and from 0.5× to 1.0× (ML-F80C-0510) with flange focal distance adjustment
▪ Designed with RGB chromatic correction
▪ Low distortion with minimal peripheral brightness fall-off
▪ Maximum applicable sensor size: 82mm
▪ Variable iris
▪ Flange focal distance control enables users to change magnification without additional cost for a complex focus system.

Download Data Drawing Data

Main Applications

: LCD glass inspection

: PCB and substrate inspection

: Printed material and web inspection

Specifications

Spec
ML-F80C-0510

Focal Length (mm)
83.73-82.53

Magnification
0.5-1.0

WD (mm)
220.1-133.3

Fno
4.0-22

Distortion
-0.05%

Weight (g)
200

Image Format (mm)
82

Mount
M39 x 1

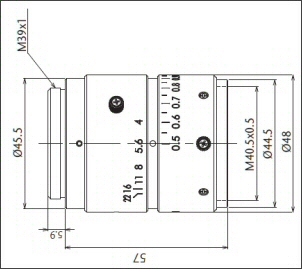

External View

Magnification Range
Supports variable magnification between 0.2× and 0.5× by adjusting the flange focal distance.

Specifications at Different Magnifications

Magnification
WD(mm)
Field of View* Ø (mm)
O/l (mm)
FFD (mm)

x 0.50
220.1
164.0
370.1
93.0

x 0.60
191.4
136.7
349.9
101.6

x 0.70
170. 8
117.1
337.9
110.1

x 0.80
155.2
102.5
330.8
118.5

x 0.90
143.1
91.1
327.0
126.9

x 1.00
133.3
82.0
325.6
135.3

× 0.50
223.2
164.0
373.45
103.9

*Values for 82 mm size sensor
