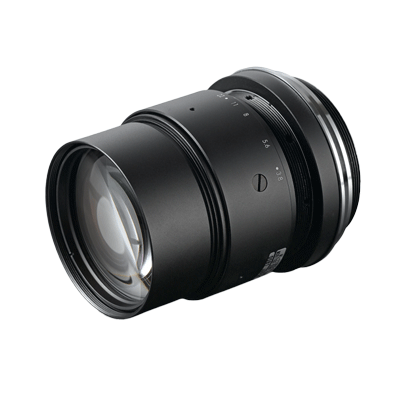

ML-13538-82V70-05

▪ The ML-13538-82V70 is designed for full compatible with latest 16K5 sensor and large format area sensors
▪ High resolution > 130lp/mm
▪ Large image circle 82mm
ML-13538-82V70-05
Download Data Drawing Data Drawing Data（STEP）
Main Applications
Electronics : PCB and Film inspection
FPD : CF, BM, LCD glass inspection



Specifications
  • Spec
  • ML-13538-82V70-05
  • Focal Length (mm)
  • 134.8
  • Magnification x
  • 0.5(0.44-0.56)
  • WD(mm)
  • 329 (300 - 365.4)
  • Fno
  • 3.80 - 22.00
  • Distortion
  • -0.092 - 0.160
  • Weight (g)
  • 743
  • Image Circle (mm)
  • 82
  • Mount
  • V mount

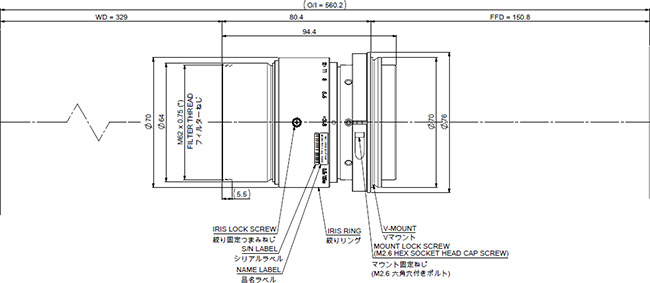

External View
