Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Line Scan/Large Format Lens

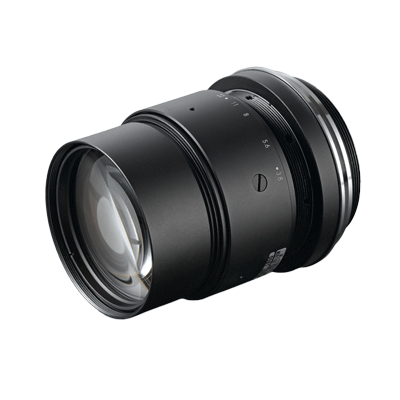

ML-13538-82V70-076

▪ The ML-13538-82V70 is designed for full compatible with latest 16K5 sensor and large format area sensors
▪ High resolution > 130lp/mm
▪ Large image circle 82mm
ML-13538-82V70-076
Main Applications
Electronics : PCB and Film inspection
FPD : CF, BM, LCD glass inspection



Specifications
  • Spec
  • ML-13538-82V70-076
  • Focal Length (mm)
  • 133.8
  • Magnification x
  • 0.76 (0.70 - 0.82)
  • WD(mm)
  • 238 (243.1 - 225.1)
  • Fno
  • 3.80 - 22.00
  • Distortion
  • -0.1
  • Weight (g)
  • 670
  • Image Circle (mm)
  • 82
  • Mount
  • V mount

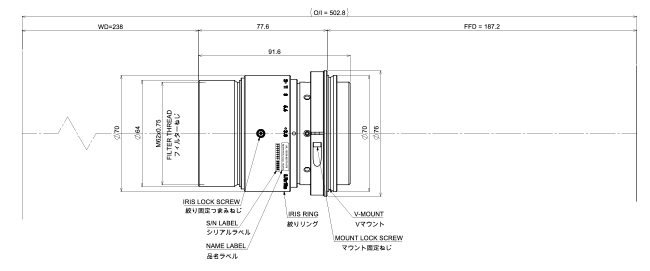

External View
