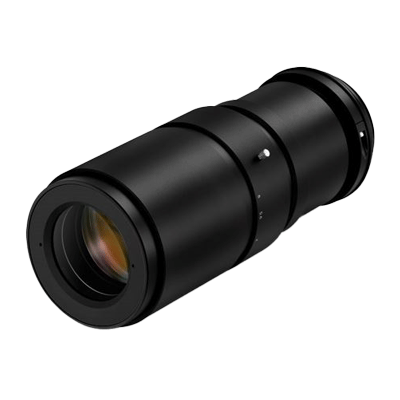

ML-12012-84V92-350
▪ Designed for 23K3.5u,16K5u line or 100M,150M large format area camera;
▪ High resolution design: 150lp/mm；
▪ Large format ，IF84mm；
▪ High Magnification from 1.67-3.5x
▪ External coaxical lighting module is available for some models.

Download DataUser Manual Drawing Date Drawing Date（STEP）

Main Applications

: Electronics : Component and PCB Inspection

: FPD : Glass alignment

Specifications

Spec
ML-12012-84V92-350

Focal Length (mm)
122.4

F#
1.2-8

IF(mm)
84

OI(mm)
678.5

WD(mm)
25

Magnification(x)
3.5

TV Distortion (%)
0.03

MTF
100lp/mm

Mount
V92

Relative Illumination（%）
99.5

Coaxial Module
O

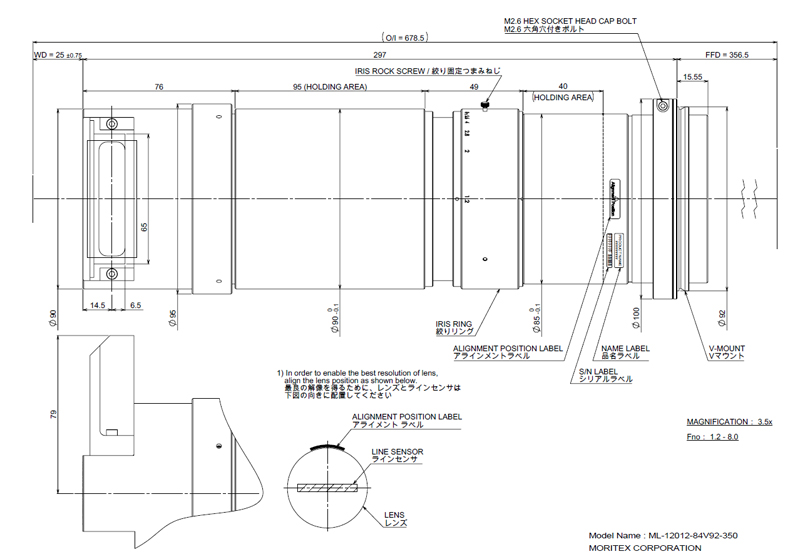

External View
