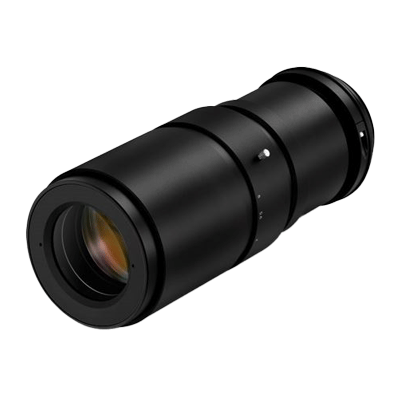

ML-12025-82V70-250-CPCL
▪ Designed for 23K3.5u,16K5u line or 100M,150M large format area camera;
▪ High resolution design: 150lp/mm；
▪ Large format ，IF84mm；
▪ High Magnification from 1.67-3.5x
▪ External coaxical lighting module is available for some models.

Download DataUser Manual Drawing Date Drawing Date（STEP）

Main Applications

: Electronics : Component and PCB Inspection

: FPD : Glass alignment

Specifications

Spec
ML-12025-82V70-250-CPCL

Focal Length (mm)
119.17

F#
2.5-22

IF(mm)
82

OI(mm)
548.7

WD(mm)
73.5

Magnification(x)
2.5

TV Distortion (%)
-0.05

MTF
100lp/mm

Mount
V70

Relative Illumination（%）
98

Coaxial Module
O

External View
