Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Line Scan/Large Format Lens

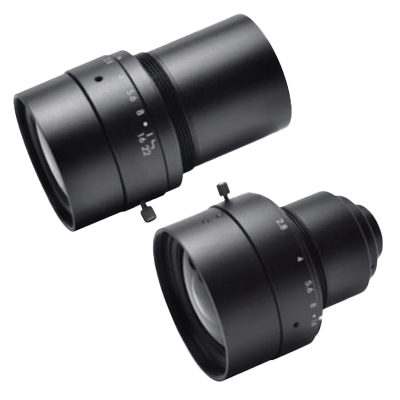

ML-2828-35M39

▪ Resolving Power 130lp/mm, Resolution 4.5μm/pixel
▪ Full size 35mm format compatible
▪ Designed for common lens mount
▪ Connection with ML-TUBE allows flexible magnification adjustment


ML-2828-35M39
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle inspection
Print: Color inspection


Model Description


Specifications
  • Spec
  • ML-2828-35M39
  • Focal Length(mm)
  • 28
  • Magnification x
  • ∞ - 0.13
  • WD(mm)
  • ∞ - 200
  • Fno
  • 2.8-22
  • AR Coating
  • Vis-NIR
  • Weight(g)
  • 230
  • Image Format(mm)
  • 35
  • Mount
  • M39

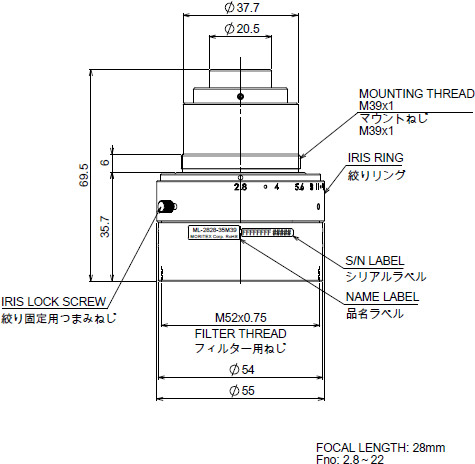

External View
