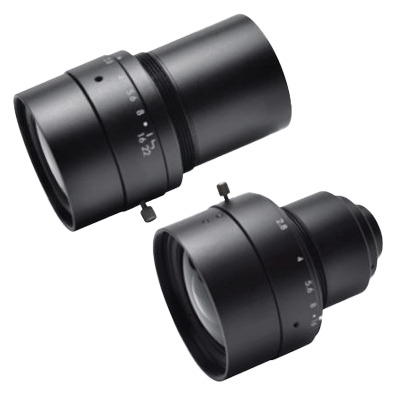

ML-6540-62M39

▪ Resolving Power 130lp/mm, Resolution 4.5μm/pixel
▪ Full size 35mm format compatible
▪ Designed for common lens mount
▪ Connection with ML-TUBE allows flexible magnification adjustment


ML-6540-62M39
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle inspection
Print: Color inspection


Model Description


Specifications
  • Spec
  • ML-6540-62M39
  • Focal Length(mm)
  • 65
  • Magnification x
  • ∞-0.4
  • WD(mm)
  • ∞-300
  • Fno
  • 4.0-22
  • AR Coating
  • Vis-NIR
  • Weight(g)
  • 120
  • Image Format(mm)
  • 62.5
  • Mount
  • M39

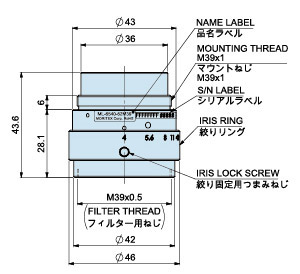

External View
