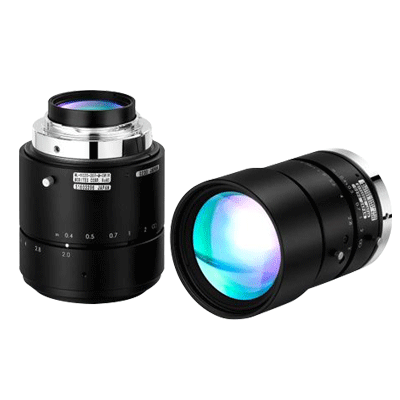

ML-2520-26F-M-SWIR

▪ Dedicated near-infrared design (770~1200 nm);
▪ Designed for special application, match with IR camera and IR illumination.
ML-2520-26F-M-SWIR
Download DataUser ManualDrawing Date Drawing Date（STEP）
Main Applications
Electronics : Component and PCB Inspection
FPD : Glass alignment


Specifications
  • Spec
  • ML-2520-26F-M-SWIR
  • Focal Length (mm)
  • 27.1
  • F#
  • 2.0-22
  • IF(mm)
  • 26
  • WD(mm)
  • ∞-400
  • Magnification(x)
  • ∞-0.062
  • Spectrum Range(nm)
  • 900-1700
  • TV Distortion (%)
  • <-0.18
  • Mount
  • F
  • Dimensions O.D.x Lens tube length (mm)
  • φ64x93.1

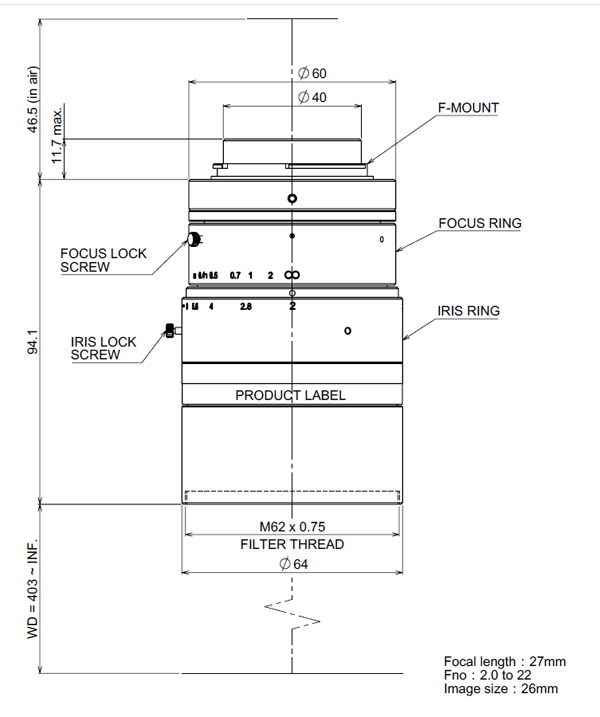

External View
