Light Sources Light Guides

Light Sources

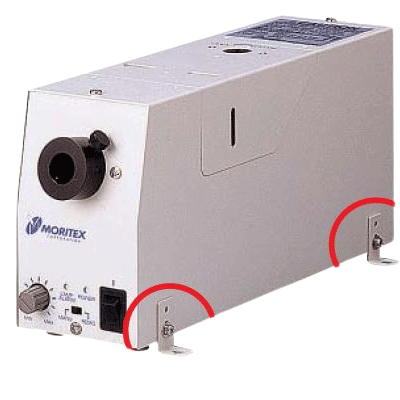

MHF-V501

▪ Compact, lightweight, and cost-effective

▪ Equipped with various control functions

▪ Compliant with environmentally friendly RoHS Directive


MHF-V501
Download Data Drawing Data(STEP)
Main Applications

• Light source for optical fiber illumination

Specifications
  • Spec
  • MHF-V501
  • Input Voltage
  • AC 85 V to 125 V (50 Hz/ 60 Hz)
  • Power Consumption
  • 125 VA (max.)
  • Lamp Voltage
  • DC 11.7 V ±0.2 V (max.)
  • Average Lamp Life *1
  • 2,000 hours nominal
  • Average Illuminance *2
  • Approx. 19,000 Lx
  • Color Temperature
  • Approx. 3,000 K
  • Weight
  • Approx. 1.8 kg
  • Operating Temperature/ Humidity
  • 0°C to +45°C°C/ 20% to 80% RH
  • Security
  • Lamp overcurrent: monitor output, lamp output cut, front panel LED (red) display Lamp out: monitor output, lamp output cut, front panel LED (red) display Internal temperature anomaly: monitor output, lamp output cut
  • Notes
  • -

* Lamps other than compatible lamps cannot be used.

Accessories
  • Option name
  • Option Model
  • Replacement lamp
  • LM-50
  • External remote connector with cable
  • MC-EXC-02
  • External remote connector
  • D-SUB155
