MBRC-CB15012-DF

LED Illumination LED Controllers

LED Illumination

MBRC-CB15012-DF
▪ This series takes advantage of high brightness chip type LED to provide uniform bar lighting in a slim, compact, and lightweight configuration.
▪ The length of the light emitting part can be extended up to 1200 mm in 150mm increments.
▪ The series uses a compact design to make items thinner and lighter.
▪ With chip type LED mounted at a high density, models deliver high brightness and high uniformity.

Download Data Drawing Data Drawing Data（STEP）

Main Applications

• Onedimensional linear CCD camera lighting
• Glass substrate scratch inspection
• Curve inspection on connector pins, etc.

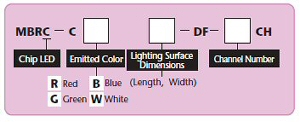

Model Description

Specifications

Spec
MBRC-CB15012-DF

Color
Blue

Maximum Rated Current CH1 (A)
0.55

Maximum Rated Current CH2 (A)
-

Dimensions (mm) Effective lighting surface CH1
150

Dimensions (mm) Effective lighting surface CH2
-

Lens Part
168

Profile
190

Weight (g)
130

Compatible Power Supply
MLEK-A080

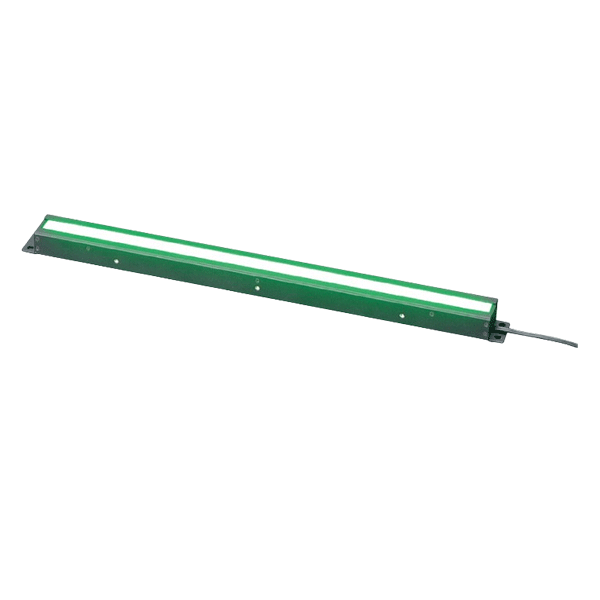

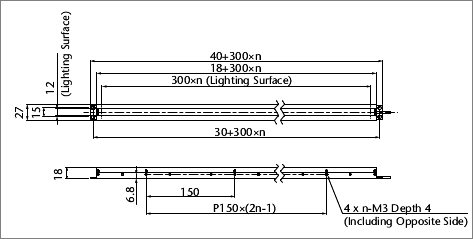

External View

Illumination Structure

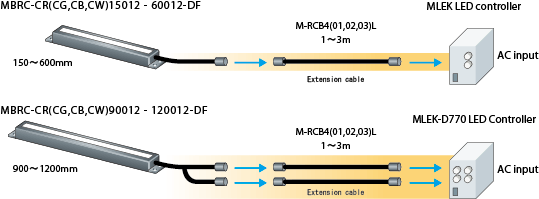

Connection Reference Diagram

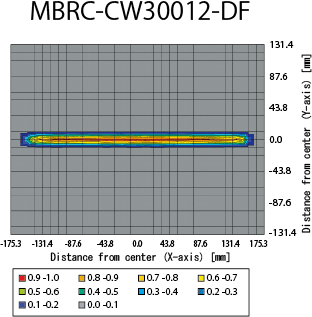

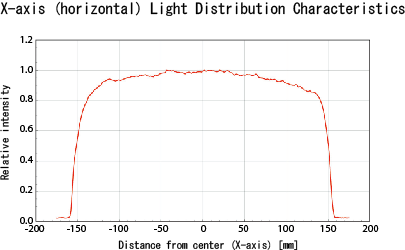

Light Distribution Characteristics
