LED Illumination LED Controllers

LED Illumination

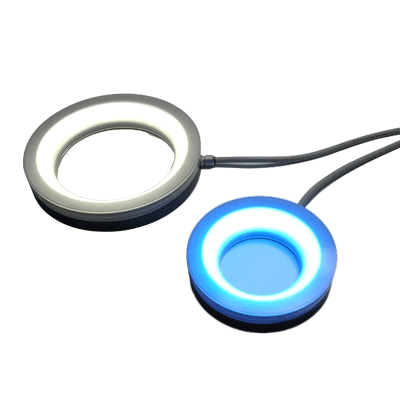

CV-HR-116X66B-M12

▪ The "High Power Diffuser Ring Illumination" is designed higher illuminance and diffusibility than conventional ring illumination.
▪ Since it compliant to IP67 rating, it can be used in environments where dust and water splash is generated.
CV-HR-116X66B-M12
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Appearance inspection (Label, Package)
• Parts inspection (Automobile, Semiconductor)

Model Description


Specifications
  • Spec
  • CV-HR-116X66B-M12
  • Emitted Color
  • Blue
  • Power [W]
  • 13
  • External Diameter [mm]
  • 116
  • Internal Diameter [mm]
  • 66
  • Thickness [mm]
  • 26.5

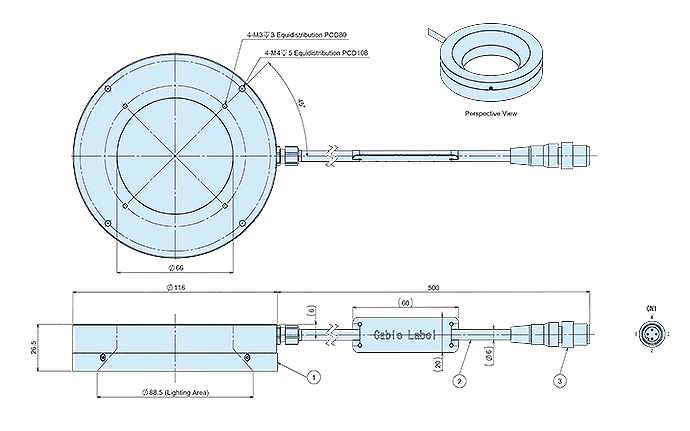

External View
Illumination Structure
