LED Illumination

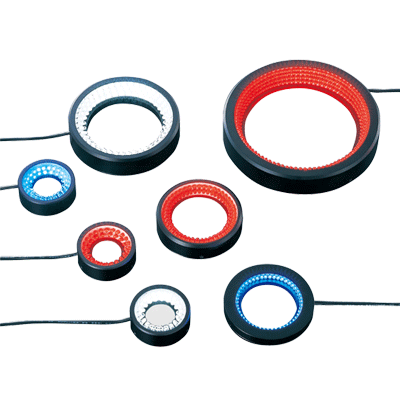

MLRL-CB25

▪ Optimal lighting for recognizing shallow unevenness like embossing, scratches, etc. using 360-degree illumination from a shallow angle to ensure that the LEDs are not reflected even on glossy workpieces.
▪ MLRL-CR (also -CG, -CB and -CW) 46/109 products provide zero-degree lighting output.
MLRL-CB25
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Inspection of BGA solder ball position, shape and area
• Reading laser stamps
• Inspection of wafers and glass substrates for scratches and dirt
• Other edge detection inspection, etc

Model Description


Specifications
  • Spec
  • MLRL-CB25
  • Color
  • Blue
  • Maximum Rated Current (A)
  • 0.24
  • Ring Internal Diameter (mm)
  • φ25
  • Ring External Diameter (mm)
  • φ50
  • Output Angle (°)
  • 30
  • Weight (g)
  • 50
External View
Accessories
  • Option name
  • Option Model
Illumination Structure ・These products illuminate surfaces and other workpieces from a low position.
Light Distribution Characteristics
Light Distribution Characteristics
Imaging Examples
MLRL-CW100

MLRL-CW68

Mobile phone button parts   Scratches on the inside edge of a CD
