MLRL-CW48

LED Illumination LED Controllers

LED Illumination

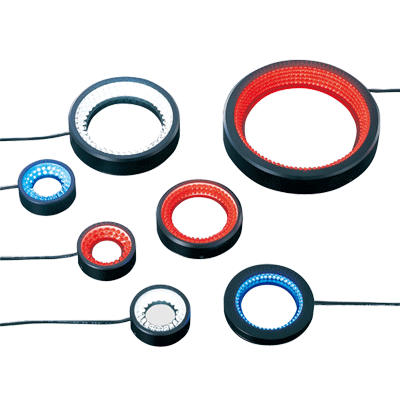

MLRL-CW48
▪ Optimal lighting for recognizing shallow unevenness like embossing, scratches, etc. using 360-degree illumination from a shallow angle to ensure that the LEDs are not reflected even on glossy workpieces.
▪ MLRL-CR (also -CG, -CB and -CW) 46/109 products provide zero-degree lighting output.

Download Data Drawing Data Drawing Data（STEP）

Main Applications

• Inspection of BGA solder ball position, shape and area
• Reading laser stamps
• Inspection of wafers and glass substrates for scratches and dirt
• Other edge detection inspection, etc

Model Description

Specifications

Spec
MLRL-CW48

Color
White

Maximum Rated Current (A)
0.3

Ring Internal Diameter (mm)
φ48

Ring External Diameter (mm)
φ74

Output Angle (°)
30

Weight (g)
65

External View

Accessories

Option name
Option Model

Diffuser Plate
MDF-LR48

Illumination Structure

・These products illuminate surfaces and other workpieces from a low position.

Light Distribution Characteristics

Imaging Examples

MLRL-CW100

MLRL-CW68

Mobile phone button parts

Scratches on the inside edge of a CD
