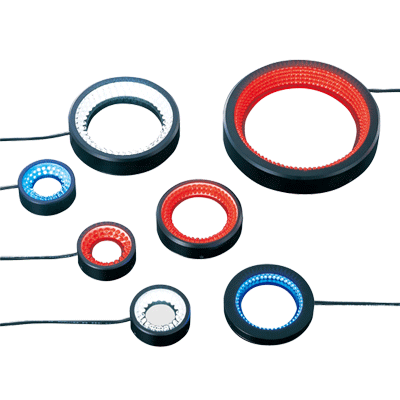

CV-RLA-100X70-30B(-M12)


▪ Reflection can be minimized by the low-angle, dark-field lighting configuration.

▪ Ideal for imaging of uneven surfaces such as embossment and surface flaw detection.



CV-RLA-100X70-30B(-M12)
Download Data Drawing Data Drawing Data （STEP）
Main Applications

• Substrate and PCB positioning
• Chip component inspection
• LCD alignment
• Label inspection
• Plastic container inspection
• Mounter
• IC marking inspection, etc.

Model Description


Specifications
  • Spec
  • CV-RLA-100X70-30R(-M12)
  • Emitted Color
  • Blue
  • Power(W)
  • 8.7
  • External Diameter(mm)
  • 100
  • Internal Diameter(mm)
  • 70
  • External Dimensions (height) (mm)
  • 22
  • Lighting Angle(°)
  • 30
  • Weight(g)
  • 170

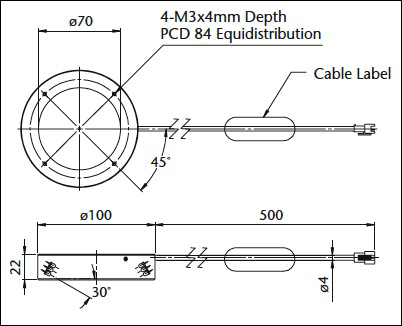

External View
Accessories
  • Option name
  • Option Model
Illumination Structure
Light Distribution Characteristics
Imaging examples

Chamfer Checking on Metal Ring   12-Pin Connector
