LED Illumination LED Controllers

LED Illumination

CV-FR-125X44R(-M12)

▪ This series provides soft, uniform, and evenly diffused lighting on glossy surfaces.


CV-FR-125X44R(-M12)
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• BGA solder ball position/shape/area inspection
• Laser marking reading
• Wafer/glass substrate scratch/dirt inspection
• Other edge extraction inspection, etc.

Model Description


Specifications
  • Spec
  • CV-FR-125X44R(-M12)
  • Emitted Color
  • Red
  • Power(W)
  • 2.3
  • External Diameter(mm)
  • 125
  • Internal Diameter(mm)
  • 44
  • External Dimensions (height) (mm)
  • 12
    • Weight(g)
    • 280

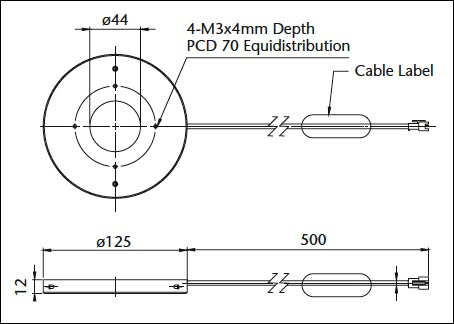

External View
Illumination Structure

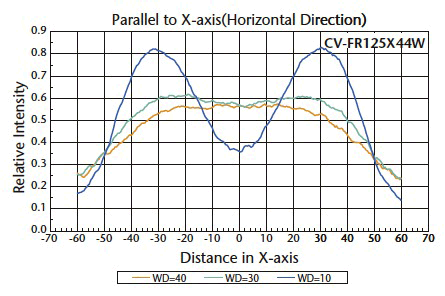

Light Distribution Characteristics
Imaging examples


CD Inspection
OCR on Brushed Metal Surface
