LED Illumination LED Controllers

LED Illumination

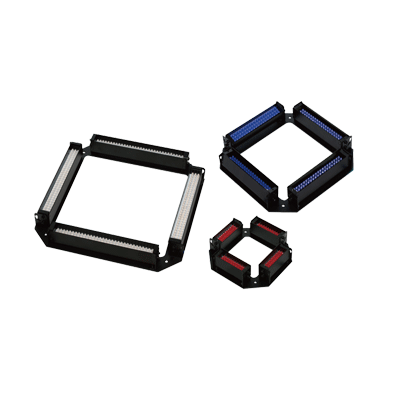

MDQL-CR58

▪ Featuring a four-way bar arrangement and angle adjustment capabilities, this series provides a wide range of lighting options.


MDQL-CR58
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• QFP and SOP inspection
• Metal plate surface inspection
• Ceramic package appearance inspection

Model Description


Specifications
  • Spec
  • MDQL-CR58
  • Color
  • Red
  • Maximum Rated Current (A)
  • 0.09
  • Inside Dimensions (mm)
  • 30
  • External Dimensions (mm)
  • 58
  • Weight (g)
  • 55
External View
Illumination structure
Light distribution characteristics
Imaging examples
MDQL-CR108+MSCL-CR74+MLMSC74

MDQL-CR108

IC leads   Optical component (mirror) edges
