LED Illumination LED Controllers

LED Illumination

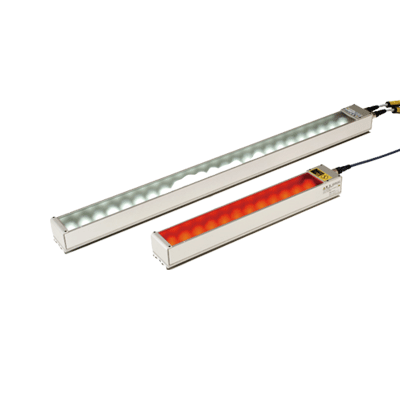

MHBC-CR150-DF


▪ 10 times brighter than the existiong LED line light

▪ Equipped with the adjustable mechanism of light focusing position
▪ High power output with 25mm thickness




MHBC-CR150-DF
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Character recognition
• Pharma Food Cosmetics Inspection
• Solder inspection on P.C.B
• Automotive part inspection

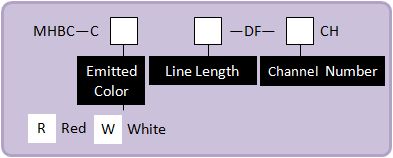

Model Description


Specifications
  • Spec
  • MHBC-CR150-DF
  • Color
  • Red
  • Maximum Rated Current(A)
  • 1.15
  • Dimensions(mm) Effective lighting surface
  • 150×42
  • Profile(mm)
  • 200
  • Weight(g)
  • 450
  • Compatible Power Supply
  • MLEK-A120

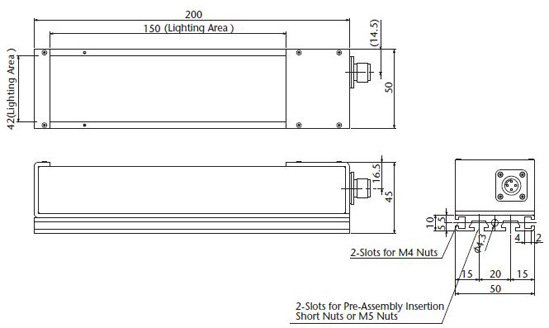

External View
Light Intensity Characteristics
