▪ These units capture object profiles at a higher precision than traditional backlights, which rely on collimated light projected from the rear and make it difficult to recognize objects.
▪ Removes shadows from stray light hitting a 3D object.
• Dimension measurements on high surfaces
• Recognition of alignment marks on glass substrates
MDBL-CB70 direct backlighting The shape of the object is indistinct because the light is being projected from the background. |

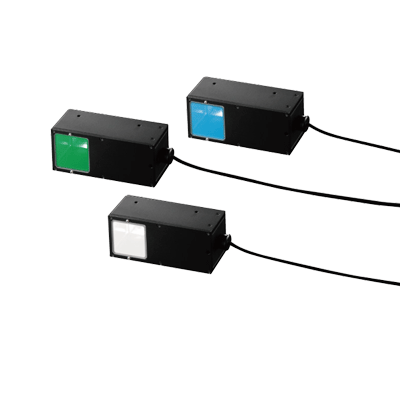

MCBP-CB3430 collimated lighting Collimated light helps reduce the effects of light projected from the background, making it easier to distinguish the the shape of the object. |
MDBL-CB70 direct backlighting Like normal light, the light from this direct backlighting penetrates the entire workpiece evenly. |
MCBP-CB3430 collimated lighting With this collimated illumination, light is refracted onto the characters to improve visibility of both the characters and the external shape. |
