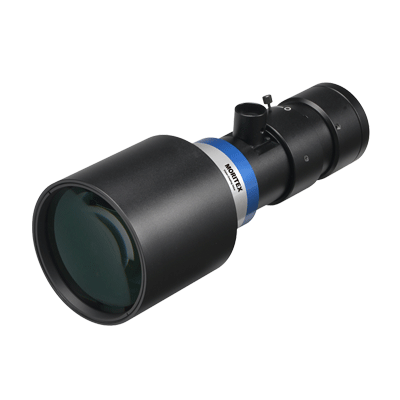

| Spec | MTL-3518C-053 | |||
|---|---|---|---|---|
| Max IF (mm) | 18.5 | |||
| FOV type (Φmm) | 35 | |||
| Mag. (x) | 0.527 | |||
| WD (mm) | 95 | |||
| Field of View | 1/2" | H | 6.4 | 12 |
| V | 4.8 | 9 | ||
| D | 8 | 15 | ||
| 1/1.8" | H | 7.1 | 13 | |
| V | 5.3 | 10 | ||
| D | 8.9 | 17 | ||
| 2/3" | H | 8.8 | 17 | |
| V | 6.6 | 13 | ||
| D | 11 | 21 | ||
| 1.1" | H | 14.1 | 27 | |
| V | 10.3 | 20 | ||
| D | 18.1 | 33 | ||
| Optical specifications | Effective F# | 8.0 | ||
| Distortion | (%) | -0.03 | ||
| Telecentricity | (deg.) | 0.05 | ||
|
Resolution @520nm |
(μm) | 9.6 | ||
|
DOF @40um |
(mm) | 2.3 | ||

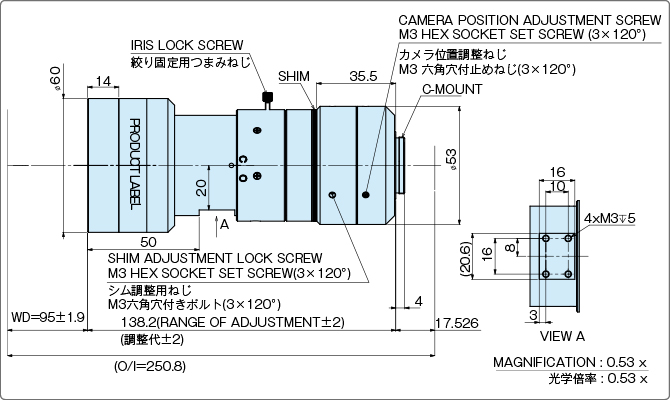

| Mechanical specifications | Front Outer dia. | (Φmm) | 60 | |
| Barrel Length | (mm) | 138.2 | ||
| Weight | (kg) | 0.51 | ||
| Mount | C | |||
