LED Illumination

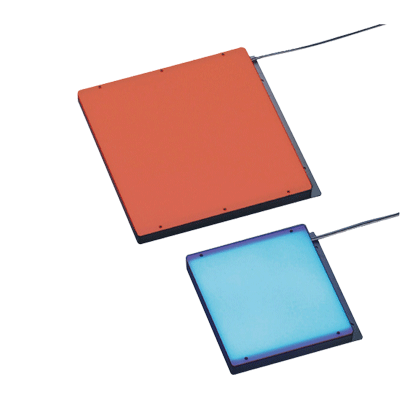

CV-FL-83X75B(-M12)

▪ These thin (10-mm, 15-mm) surface mounted LEDs are outfitted with densely packaged chip LED.

Download Data Drawing Data Drawing Data （STEP） Drawing Data(-M12)

Main Applications

• Alignment inspection on specular surfaces, including wafers, metal surfaces, film, liquid crystal, and glass
• PCB pattern work

Model Description

Specifications

Spec
CV-FL-83X75B(-M12)

Emitted Color
Blue

Power(W)
7.2

External Dimensions (Length) (mm)
85

External Dimensions (Width) (mm)
95

Thickness (mm)
15

Lighting Surface Dimensions (Length) (mm)
75

Lighting Surface Dimensions (Width) (mm)
83

Weight(g)
100

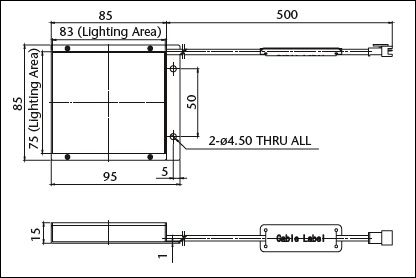

External View

Accessories

Option name
Option Model

Light Control Film
CV-LC-FL-83X75

Illumination Structure

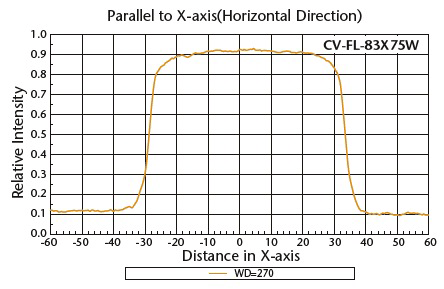

Light Distribution Characteristics

Imaging examples

Cutter Disc Roundness Check

Candle Size Measurement
