CV-NFL-230X230W


▪ The Narrow Backlight is designed higher directivity in direction of light emitting surface than conventional backlight.

▪ Since wraparound of light to side of the work piece is reduced, it is possible to capture the contour of work piece with higher precision.

▪ By combining with our Bi-telecentric Lenses "MTL Series", it can be applied to more precise image measurement.



CV-NFL-230X230W
Download Data Drawing DataDrawing Data (STEP)
Main Applications

• Image measurement
• Silhouette inspection

Model Description


Specifications
  • Spec
  • CV-NFL-230X230W
  • Emitted Color
  • White
  • Power [W]
  • 24.4
  • External Dimension (Length) [mm]
  • 268
  • External Dimension (Width) [mm]
  • 240
  • Thickness [mm]
  • 15
  • Lighting Area Dimension (Length) [mm]
  • 230
  • Lighting Area Dimension (Width) [mm]
  • 230

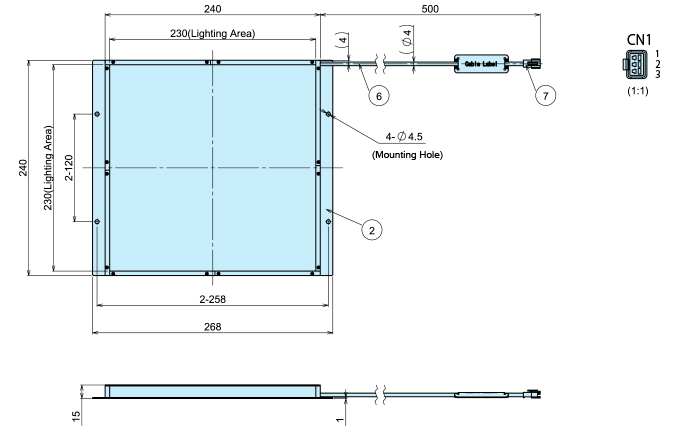

External View
Illumination Structure
