Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Macro/CCTV Lens

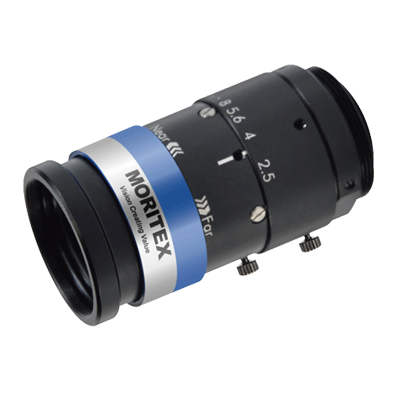

ML-M0822UR

▪ Compact Design
▪ Vis/NIR AR Coating
▪ Vibration Resistance
▪ High resolving power 200lp/mm,High resolution 2.2μm/pixel
▪ Format size 2/3" compatible

ML-M0822UR
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle, Pharma, etc.
Automotive: Mechanical Parts Inspection
Model Description
Specifications
  • Spec
  • ML-M0822UR
  • Focal Length （mm）
  • 8
  • Fno
  • 2.2-16
  • Image format （mm）
  • 11(2/3 " sensor)
  • Resolving power (lp/mm)
  • Center：200　Margin：100
  • Minimum WD(mm)
  • 100

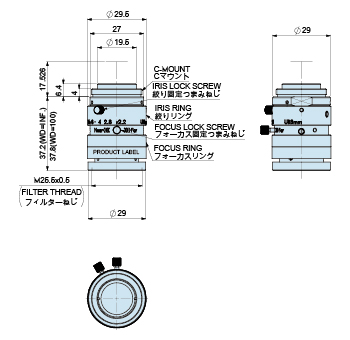

External View
