LED Illumination LED Controllers

LED Illumination

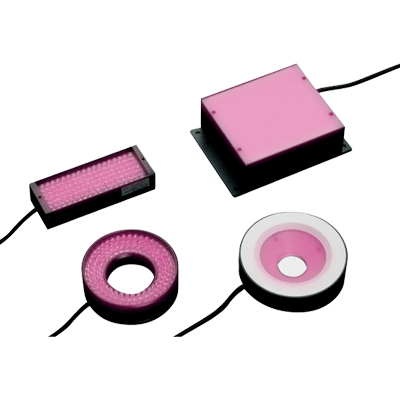

MDRL-CIR31


▪ Peak wavelength of 850 nm for most models, 940 nm for the MCEL-CIR8-940.

▪ Provides high-contrast recognition of images that are often difficult to produce with visible light.

▪ Effectively illuminates materials that react chemically to visible light rays.

▪ Using IR Series models with infrared-compatible cameras and our lenses delivers highly effective results.

▪ Achieves approximately 1.7-times higher reflectance rate for 500-nm and 850-nm gold (Au) than visible light.



MDRL-CIR31
Main Applications

• Recognition of gold wiring
• Internal recognition of plastic bottles (with film)

Model Description


Specifications
  • Spec
  • MDRL-CIR31
  • Color
  • Infrared
  • Maximum Rated Current (A)
  • 0.42
  • Ring Internal Diameter/Dimension (mm)
  • φ31
  • Ring External Diameter/Dimension (mm)
  • φ66
  • Light Emitting Part Dimensions
  • -
  • Weight (g)
  • 130
  • Product Type
  • Direct Rings

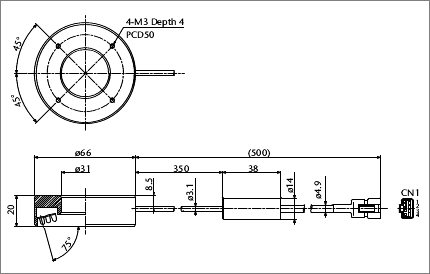

External View
