LED Illumination LED Controllers

LED Illumination

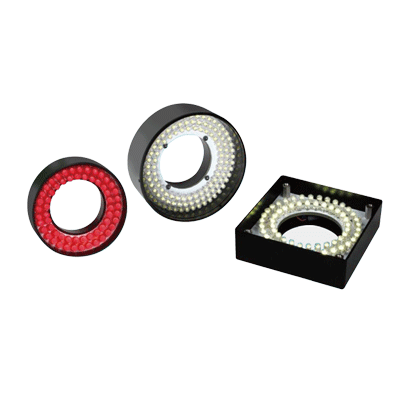

MDRL-CW35

▪ The long working distance type makes a clear distinction from the conventional direct ring MDRL Series.
▪ The recommended working distance is 65 mm or more. If the object surface is reflective, a working distance of about 200 mm is acceptable.
MDRL-CW35
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Substrate and PCB positioning
• Chip component inspection
• LCD alignment
• Plastic container inspection
• Label inspection
• Mounting machine
• IC marking inspection, etc.

Model Description


Specifications
  • Spec
  • MDRL-CW35
  • Color
  • White
  • Maximum Rated Current (A)
  • 0.52
  • Ring Internal Diameter (mm)
  • φ35
  • Ring External Diameter (mm)
  • φ70
  • Output Angle (°)
  • 90
  • Weight (g)
  • 150

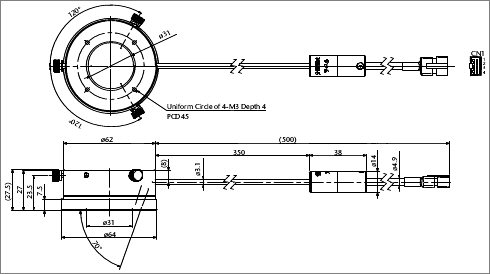

External View
Accessories
  • Option name
  • Option Model
Illumination Structure
Light Distribution Characteristics
Imaging examples
