LED Illumination LED Controllers

LED Illumination

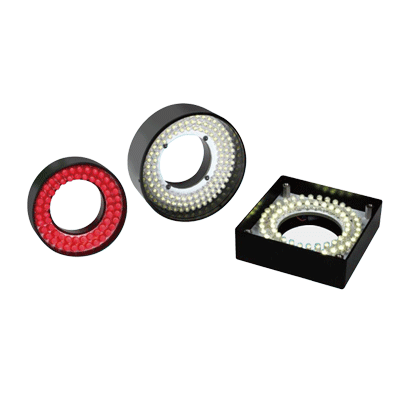

MDRL-CW16-NS

▪ High intensity LEDs are placed in a highdensity array to provide uniform lighting without shadows from all directions.
▪ A standard type of LED illumination that can used for a wide variety of applications.
▪ Intended for working distance from 65 mm to 200 mm for highly reflective materials.
MDRL-CW16-NS
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Substrate and PCB positioning
• Chip component inspection
• LCD alignment
• Plastic container inspection
• Label inspection
• Mounting machine
• IC marking inspection, etc.

Model Description


Specifications
  • Spec
  • MDRL-CW16-NS
  • Color
  • White
  • Maximum Rated Current (A)
  • 0.34
  • Ring Internal Diameter (mm)
  • φ16
  • Ring External Diameter (mm)
  • φ44
  • Output Angle (°)
  • 75.5
  • Weight (g)
  • 70

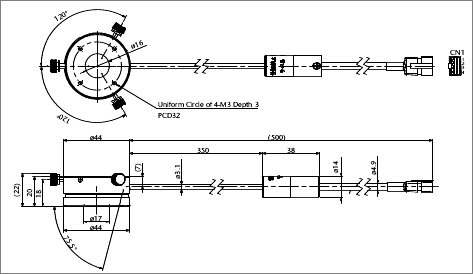

External View

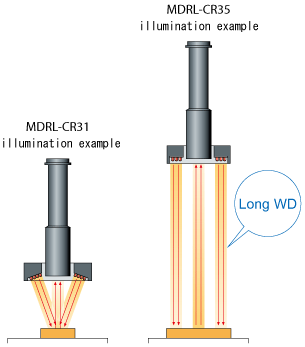

Illumination Structure
Light Distribution Characteristics

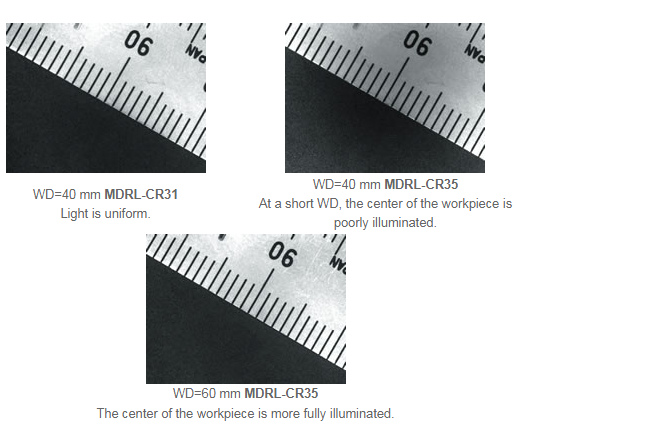

Imaging examples
