Telecentric Lens

MML037-HR220VI-28P

▪ Designed for large format camera(Diagonal 28/35/43mm);
▪ High resolution, compatible with 1.1” 3.2μm sensor.
MML037-HR220VI-28P
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
  • Model
  • MML037-HR220VI-28P
  • Magnification (x)
  • 0.37
  • O/I [mm]
  • 450.1
  • WD (mm)
  • 220
  • Resolution (μm)
  • 14~41.93
  • Depth of Field (mm)
  • 4.51~12.86
  • NA
  • 0.024~0.008
  • Effective Fno
  • 7.6~22
  • IF (mm)
  • 28
  • TV Distortion (%)
  • ≤0.006
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

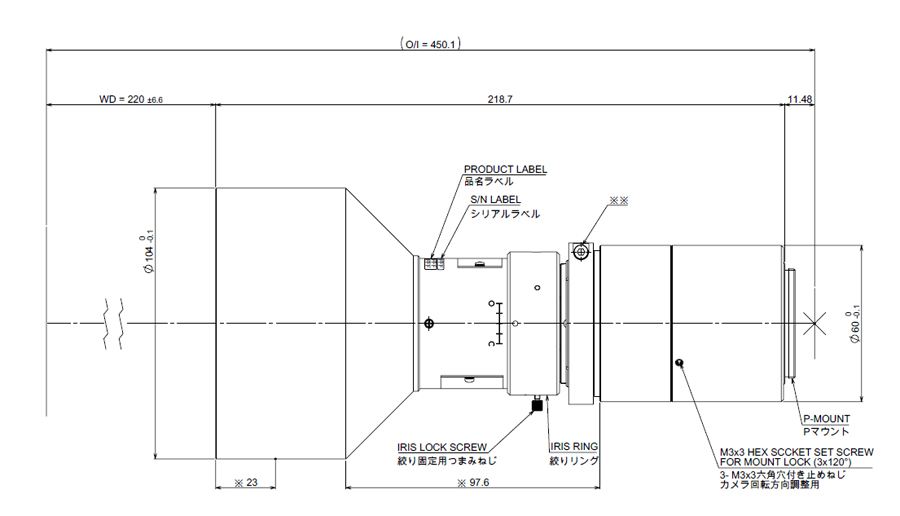

External View
