CV-SQ-56X56X30B(-M12)

LED Illumination LED Controllers

LED Illumination

CV-SQ-56X56X30B(-M12)
▪ Ring illumination with LEDs mounted vertically onto a planar substrate in a square chassis.
▪ Square shape to make mounting easier in industrial applications.

Download Data Drawing Data Drawing Data (STEP)

Model Description

Specifications

Spec
CV-SQ-56X56X30B(-M12)

Emitted Color
Blue

Power(W)
2.5

External Dimensions (Length) (mm)
56

External Dimensions (Width) (mm)
56

External Dimensions (height) (mm)
18

Internal Diameter (mm)
30

Weight(g)
85

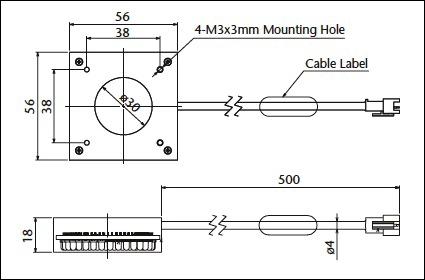

External View

Pin Assignment

JST SMR-03V-B Connector
Ref. Drawing	No.	Assign	Wire Color
	1	+V	Red/Brown
	2	NC
	3	-V	Brack/Blue

M12 Male Connector
Ref. Drawing	No.	Assign	Wire Color
	1	+V	Red/Brown
	2	NC
	3	-V	Brack/Blue
	4	NC

Illumination Structure

Imaging examples

Full Light at Longer WD

Not Much Light at Short WD
