Telecentric Lens

MML1-HR130VI-35F

▪ Designed for large format camera（Diagonal 28/35/43mm);
▪ High resolution, compatible with 1.1” 3.2μm sensor.

MML1-HR130VI-35F
Download Data Drawing Date Drawing Date（STEP）
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
  • Model
  • MML1-HR130VI-35F
  • Magnification (x)
  • 1
  • O/I [mm]
  • 328.3
  • WD (mm)
  • 130
  • Resolution (μm)
  • 4.4~14.6
  • Depth of Field (mm)
  • 0.518~1.76
  • NA
  • 0.077~0.023
  • Effective Fno
  • 6.47~22
  • IF (mm)
  • 35
  • TV Distortion (%)
  • ≤0.017
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

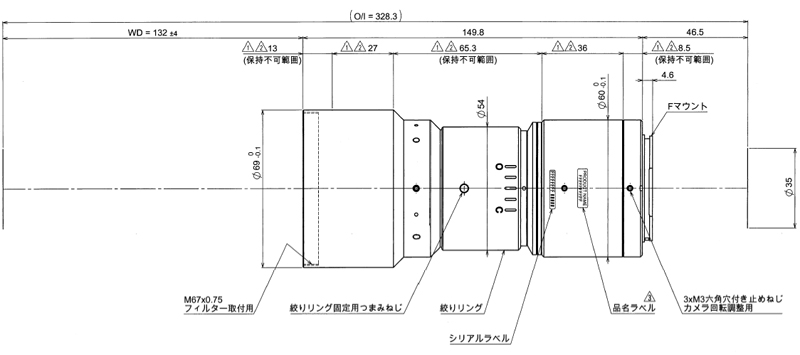

External View
