Telecentric Lens

MML2-HR110VI-43F

▪ Designed for large format camera(Diagonal 28/35/43mm);
▪ High resolution, compatible with 1.1” 3.2μm sensor.
MML2-HR110VI-43F
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
  • Model
  • MML2-HR110VI-43F
  • Magnification (x)
  • 2
  • O/I [mm]
  • 387.64
  • WD (mm)
  • 110
  • Resolution (μm)
  • 2.68~7.46
  • Depth of Field (mm)
  • 0.16~0.44
  • NA
  • 0.125~0.045
  • Effective Fno
  • 7.99~22
  • IF (mm)
  • 43
  • TV Distortion (%)
  • ≤0.017
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

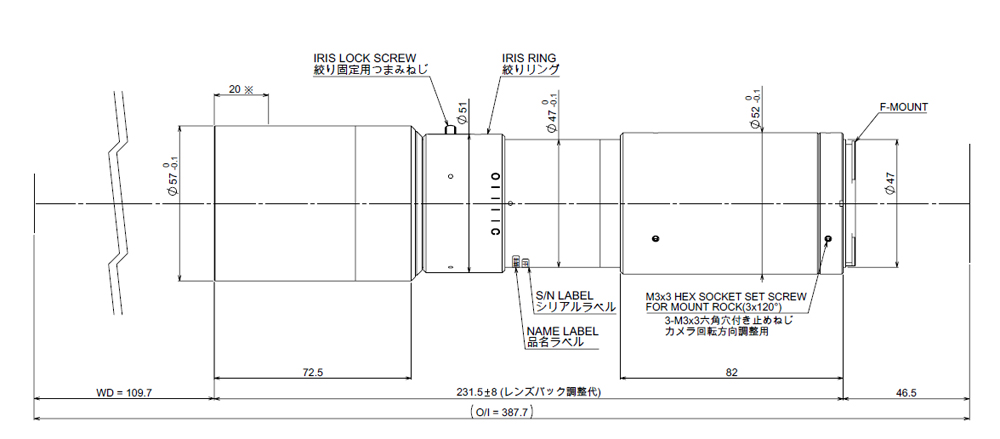

External View
