Telecentric Lens

MML5-HR80DVI-43M58

▪ Designed for large format camera(Diagonal 28/35/43mm);
▪ High resolution, compatible with 1.1” 3.2μm sensor.
 MML5-HR80DVI-43M58
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
  • Model
  • MML5-HR80DVI-43M58
  • Magnification (x)
  • 5
  • O/I [mm]
  • 400
  • WD (mm)
  • 80
  • Resolution (μm)
  • 1.99~2.94
  • Depth of Field (mm)
  • 0.05~0.07
  • NA
  • 0.17~0.114
  • Effective Fno
  • 14.7~22
  • IF (mm)
  • 43.5
  • TV Distortion (%)
  • ≤0.011
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

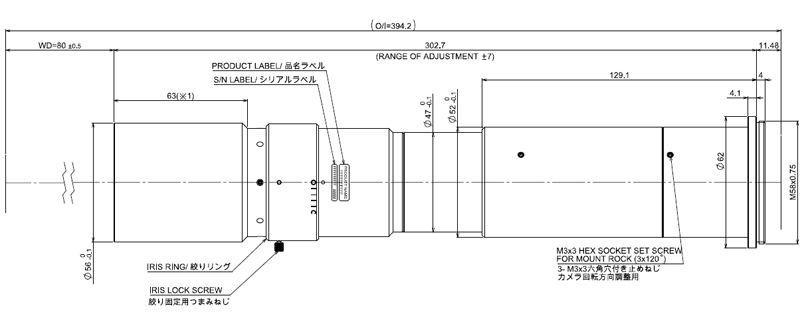

External View
