Light Sources

MHAB-150W-100V

▪ High illuminance model max 80,000 Lux (2.6 times a 100W light source)
▪ 100W/150W dual wattage lamp
▪ External linear light intensity control option
▪ Compliant with environmentally friendly RoHS Directive
▪ Worldwide power supply specifications
MHAB-150W-100V
Main Applications

• Light source for optical fiber illumination

Specifications
  • Spec
  • MHAB-150W-100V
  • AC Type
  • 100V
  • Input Voltage
  • AC100 V to 240 V (50 Hz/ 60 Hz)
  • Lamp Voltage
  • DC 14.7 V ± 0.2 V (max.) (LM-150 LM-150C) DC 11.7 V ± 0.2 V (max.) (LM-100.)
  • Average Lamp Life *1
  • 50 hours nominal (LM-150),
    500 hours nominal (LM-150C),
    1,000 hours nominal (LM-100)
  • Average Illuminance *2
  • Approx. 80000 Lx (LM-150),
    approx. 45000 Lx (LM-150C),
    approx. 30000 Lx (LM-100)
  • Color Temperature
  • 3400K(LM-150), 3200K(LM-150C), 3100K(LM-100)
  • Weight
  • Approx. 3.2kg
  • Operating Temperature/ Humidity
  • 0 to 45°C/ 20 to 80% RH
  • Safety Standards *3
  • EN61010:2001 EN61000-6-2:2001/ EN55011:1998, A1:1999, A2:2002
  • Notes
  • -

* Lamps other than compatible lamps cannot be used.

Accessories
  • Option name
  • Option Model
  • Replacement lamp
  • LM-150
  • External remote connector with cable
  • MC-EXC-02
  • External remote connector
  • D-SUB155

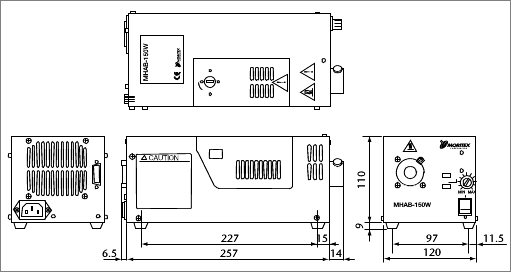

External View
