MG-Wave®

MDBC Series

▪ This low-profile, chip mount type series is ideal for saving space.

▪ The lineup also delivers broad, high-quality diffused light.

• Model Name
• Emitted Color
• Maximum Rated Current (A)
• Light-emitting Area (Dimension)
• Corresponding Product

• MDBC-CR100
• Red
• 0.81
• 100×100
• -

• MDBC-CW100-2
• White
• 0.95
• 100×100
• -

• MDBC-CR150
• Red
• 0.99
• 150×150
• -

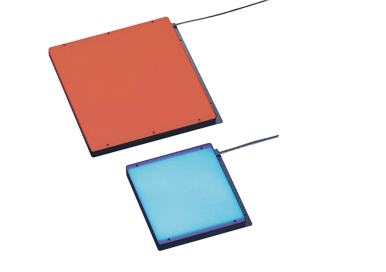

CompaVis®

CV-FL Series

▪ These thin (10-mm, 15-mm) surface mounted LEDs are outfitted with densely packaged chip LED.

• Model Name
• Emitted Color
• Power(W)
• Lighting Area Dimensions (Length) (mm)
• Lighting Area Dimensions (Width) (mm)
• Corresponding Product

• CV-FL-27X27R(-M12)
• Red
• 0.6
• 27
• 27
• -

• CV-FL-27X27B(-M12)
• Blue
• 1.4
• 27
• 27
• -

• CV-FL-27X27W(-M12)
• White
• 1.5
• 27
• 27
• -

• CV-FL-51X51R(-M12)
• Red
• 4.5
• 51
• 51
• -

• CV-FL-51X51B(-M12)
• Blue
• 5.9
• 51
• 51
• -

• CV-FL-51X51W(-M12)
• White
• 6.3
• 51
• 51
• -

• CV-FL-63X60R(-M12)
• Red
• 1.2
• 63
• 60
• -

• CV-FL-63X60B(-M12)
• Blue
• 3.4
• 63
• 60
• -

• CV-FL-63X60W(-M12)
• White
• 3.2
• 63
• 60
• -

• CV-FL-83X75R(-M12)
• Red
• 4.7
• 75
• 83
• -

• CV-FL-83X75B(-M12)
• Blue
• 7.2
• 75
• 83
• -

• CV-FL-83X75W(-M12)
• White
• 6.9
• 75
• 83
• -

• CV-FL-100X100R(-M12)
• Red
• 3.5
• 100
• 100
• MDBC-CR100

• CV-FL-100X100B(-M12)
• Blue
• 10.4
• 100
• 100
• -

• CV-FL-100X100W(-M12)
• White
• 9.9
• 100
• 100
• MDBC-CW100-2

• CV-FL-230X230R(-M12)
• Red
• 25
• 230
• 230
• -

• CV-FL-230X230B(-M12)
• Blue
• 24
• 230
• 230
• -

• CV-FL-230X230W(-M12)
• White
• 24.2
• 230
• 230
• -
