CompaVis®

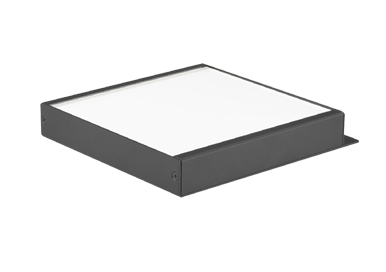

CV-NFL Series

▪ The Narrow Backlight is designed higher directivity in direction of light emitting surface than conventional backlight.

▪ Since wraparound of light to side of the work piece is reduced, it is possible to capture the contour of work piece with higher precision.

▪ By combining with our Bi-telecentric Lenses "MTL Series", it can be applied to more precise image measurement.

• Model Name
• Emitted Color
• Power(W)
• Lighting Area Dimensions (Length) (mm)
• Lighting Area Dimensions (Width) (mm)
• Corresponding Product

• CV-NFL-27X27G
• Green
• 1.7
• 27
• 27
• -

• CV-NFL-27X27W
• White
• 1.7
• 27
• 27
• -

• CV-NFL-51X51G
• Green
• 2.9
• 51
• 51
• -

• CV-NFL-51X51W
• White
• 2.9
• 51
• 51
• -

• CV-NFL-63X60G
• Green
• 3.4
• 63
• 60
• -

• CV-NFL-63X60W
• White
• 3.4
• 63
• 60
• -

• CV-NFL-83X75G
• Green
• 5.8
• 83
• 75
• -

• CV-NFL-83X75W
• White
• 5.8
• 83
• 75
• -

• CV-NFL-100X96G
• Green
• 9.9
• 100
• 96
• -

• CV-NFL-100X96W
• White
• 9.9
• 100
• 96
• -

• CV-NFL-150X146G
• Green
• 21.7
• 150
• 146.5
• -

• CV-NFL-150X146W
• White
• 21.7
• 150
• 146.5
• -

• CV-NFL-230X230G
• Green
• 24.4
• 230
• 230
• -

• CV-NFL-230X230W
• White
• 24.4
• 230
• 230
• -
