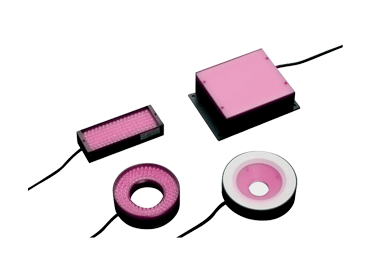

MG-Wave®

IR Series

▪ Peak wavelength of 850 nm for most models, 940 nm for the MCEL-CIR8-940.

▪ Provides high-contrast recognition of images that are often difficult to produce with visible light.

▪ Effectively illuminates materials that react chemically to visible light rays.

▪ Using IR Series models with infrared-compatible cameras and our lenses delivers highly effective results.

▪ Achieves approximately 1.7-times higher reflectance rate for 500-nm and 850-nm gold (Au) than visible light.

• Model Name
• Color
• Maximum Rated Current (A)
• Ring Internal Diameter (mm)
• Ring External Diameter (mm)
• Corresponding Product

• MDRL-CIR16
• Infrared
• 0.27
• φ16
• φ48
• -

• MDRL-CIR31
• Infrared
• 0.42
• φ31
• φ66
• -

• MDBL-CIR70
• Infrared
• 0.53
• -
• -
• -

• MCEL-CIR8-940
• Infrared
• 0.06
• -
• -
• -

CompaVis®

CV-IR Series

▪ Peak wavelength of 940 nm for.

▪ Provides high-contrast recognition of images that are often difficult to produce with visible light.

▪ Effectively illuminates materials that react chemically to visible light rays.

▪ Using IR Series models with infrared-compatible cameras and our lenses delivers highly effective results

▪ Achieves higher reflectance for 940-nm gold (Au) than visible light.

• Model Name
• Emitted Color
• Power(W)
• Lighting Area Dimensions (Length) (mm)
• Lighting Area Dimensions (Width) (mm)
• Corresponding Product

• CV-BA-42X15IR
• IR
• 0.9
• 42
• 15
• -
